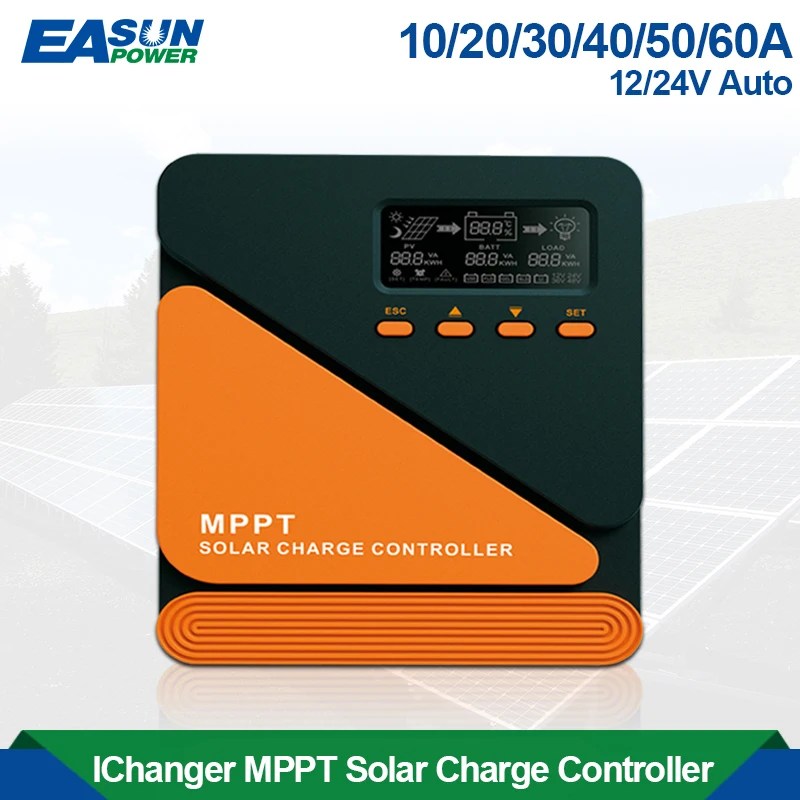

EASUN Solar Charger Controller MPPT 60A 50A 40A 30A 20A 10A Solar Panel Solar Charge Regulator 12V 24V Battery PV Input 100VOC
Features：
100% MPPT controller
Intelligent Maximum Power Point Tracking technology
Built-in DSP controller with high performance
Automatic battery voltage detection 12V/24V
Three-stage charging optimizes battery performance
Multi-function LCD displays
Reverse polarity protection of solar panel
Overcharge protection
Can be mounted easily
Suitable for battery types of sealed lead acid, vented Gel, and Lithium battery
|
Model |
MPPT10A |
MPPT20A |
MPPT30A |
MPPT40A |
MPPT50A |
MPPT60A |
|
Systemvoltage |
12V/24V/Auto |
|||||
|
No-loadloss |
≤0.4W |
|||||
|
Max.solarinputvoltage |
50VVOC |
100VVOC |
||||
|
Batteryvoltage |
9~32V |
|||||
|
Max.powerpointvoltagerange |
Batteryvoltage+2V~50V |
Batteryvoltage+2V~100V |
||||
|
Ratedchargingcurrent |
10A |
20A |
30A |
40A |
50A |
60A |
|
Ratedloadcurrent |
20A |
|||||
|
USBoutput |
5V*3A |
|||||
|
Max.photovoltaicsysteminputpower |
120W/12V |
240W/12V |
360W/12V |
480W/12V |
600W/12V |
720W/12V |
|
Conversionefficiency |
≤98% |
|||||
|
MPPTtrackingefficiency |
＞99% |
|||||
|
Temperaturecompensationfactor |
-2mv/C/2V(default) |
|||||
|
Operatingtemperature |
-10C~+65 C |
|||||
|
Waterprooflevel |
IP21 |
|||||
|
Netweight |
0.4kg |
1.08kg |
1.43kg |
|||
|
Grossweight |
0.52kg |
1.3kg |
1.65kg |
|||
|
Electromagneticcompatiblity |
AccordtoEN61000,EN55022,EN55024 |
|||||
|
Communicationmethod |
Rs485(Needtochooseandbuy) |
|||||
|
Altitude |
≤3000m |
|||||
|
Productdimensions |
135x135x55mm |
196x186x76mm |
230x186x76mm |
|||
